Optical Instruments India

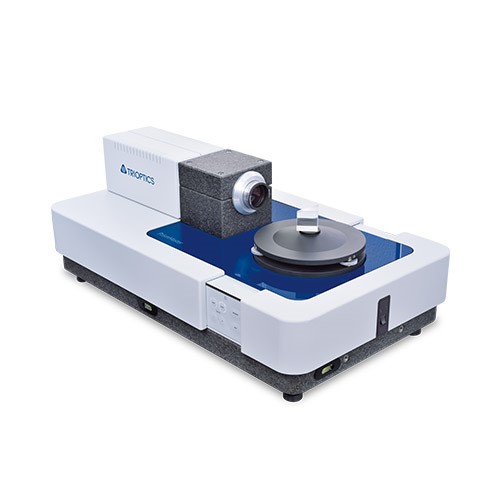

PrismMaster® 300

(Automatic Precision Goniometer)


The TRIOPTICS PrismMaster® 300 is a high precision and versatile automatic goniometer for angular measurements of prims, polygons and wedges. It offers a number of innovative features:
  • High accuracy of 0.5 arcseconds.
  • Stable granite frame for all measuring parts.
  • Measurement table in three different heights.

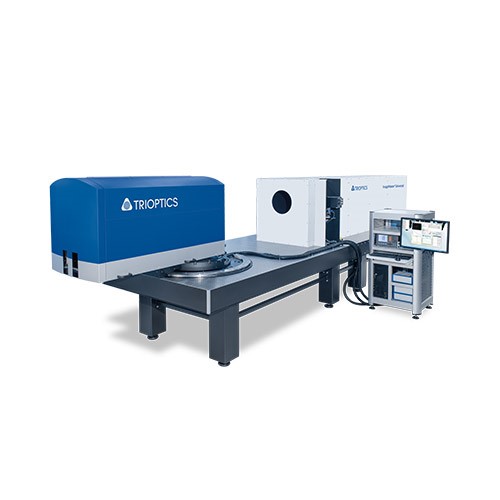

ImageMaster® Universal

(Horizontal MTF Measurement in a wide spectral range)


Innovative design, high quality and long life components are combined in the ImageMaster® Universal with user friendly software. Its horizontal construction facilitates testing of large lenses.
  • Accurate measurement of virtually any existing lens system: infinite, finite, afocal.
  • For high performance photographic imaging lenses up to high resolution telescopes.
  • Spectral range of the MTF Measurement from UV to visible spectrum to IR(NIR/SWIR/MWIR/LWIR).

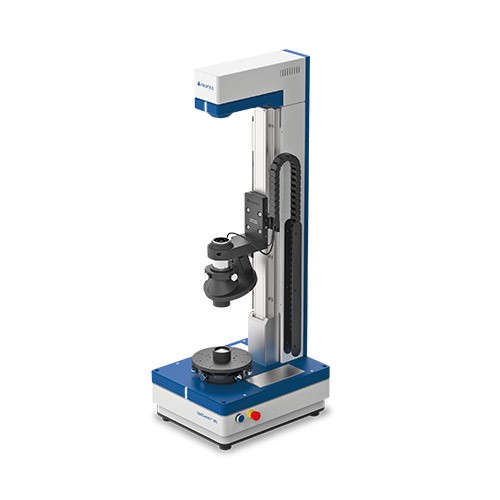

OptiCentric® 101

(Centration testing taken to a new level)


With its specially stable structure and an increase in processing speed by the factor of 4, the OptiCentric® 101 is increasing precision and efficiancy. The OptiCentric® 101 is available in two layouts, Static Autocollimator and Moving Autocollimator.
  • Lens diameter from 0.5 mm to 225 mm.
  • Precision < 0.1 µm.
  • Maximum sample weight of 20 Kg on adjustment table.
  • Motorized or manual stage with 500 mm travel path as standard.

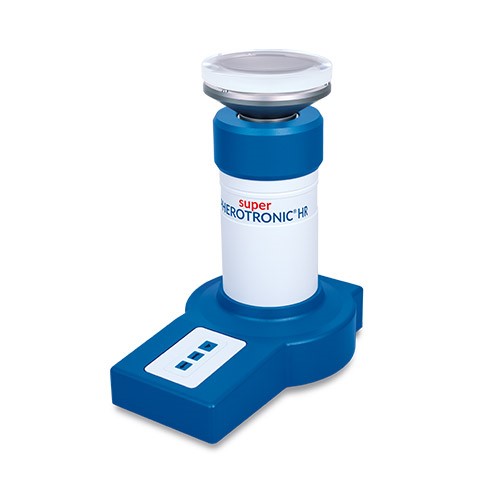

SuperSpherotronic® HR

(Precise and reproduceable)


The SuperSpherotronic® HR offers excellent accuracies of up to ±0.01%.
  • Radius measurement of convex and concave surfaces up to +3 mm and −6 mm.
  • Excellent precision for the measurement of highly curved surfaces with a large lens diameter by means of an increased travel of 60 mm.
  • Extreme resistance to mechanical deformation thanks to the use of tungsten carbide balls in the ring.

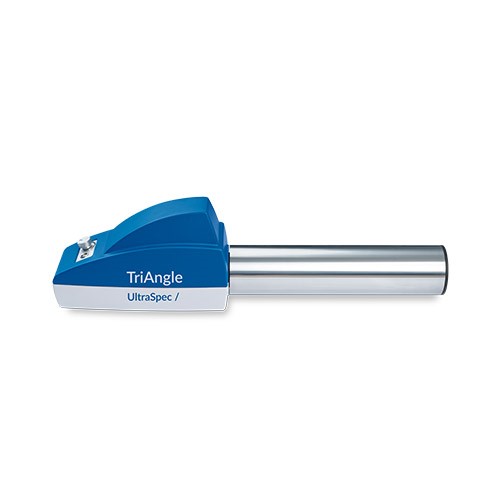

TriAngle UltraSpec

(High precision electronic autocollimator)


TriAngle UltraSpec offers high-precision angle measurement systems for extremely high demands on angle resolution and measurement accuracy especially in the laboratory.
  • Available with 300 mm and 500 mm objective focal length.
  • Variable measuring range and accuracy performance of up to 0.05 arcsec.
  • Mechanically and thermally optimized design.



   ("For more details kindly contact us and we will provide with a detailed specification of the products.")
